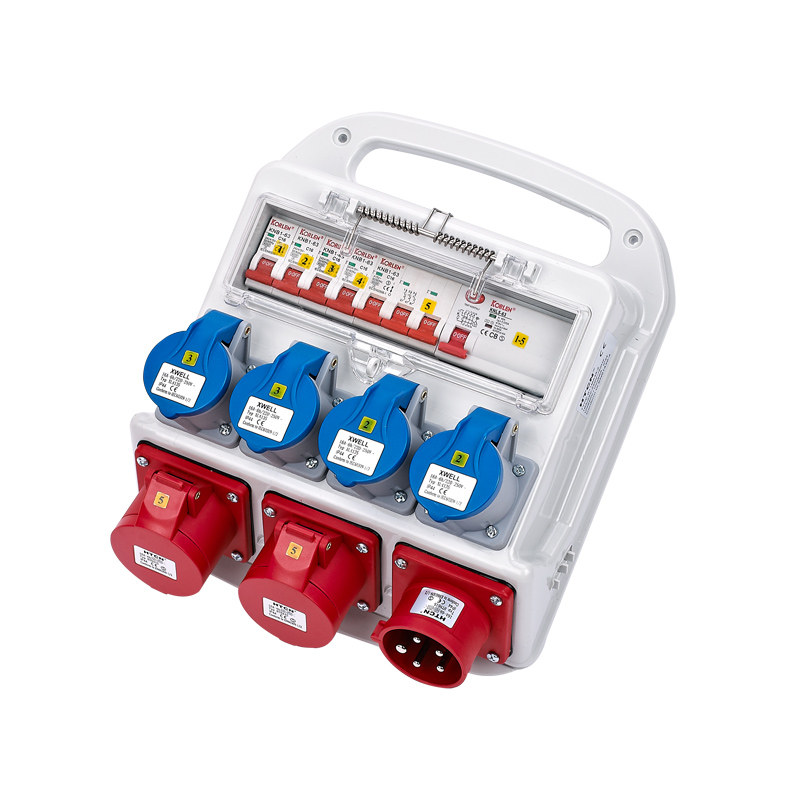

B11MA47-2 IP44 Distribution Box Mounted 16A/5P
B11MA47-2
B11MA47-2
B11MA47-2 IP44 Distribution Box Mounted 16A/5P
16A/5PIP44 Box11 Modules
Input: 16A 3P+N+E 400V IP44
Frequency: 50Hz
Degree of IP Protection: IP44
Degree of IK Protection: IK08
Position for Fuse: 11 Modules
Enclosure Size: 319*273*101mm
PDF Download
Technical specifications
ModelB11MA47-2
Commercial SeriesB11 Series
Product descriptionDistribution box
Mouting versionMounted
Dimensions319*273*101mm
Housing materialPC/ABS
Protection degree IPIP44
Protection degree IKIK08
Input plugCEE 16A/5P/400V
Sockets with Earth Contact-
CEE socket 16A

4 16A/3P/230V

2 16A/5P/400V

CEE socket 32A-
CEE socket 63A-
Fusing1 RCD 40A/4P

4 MCB 16A/1P

1 MCB 16A/3P
