HTPZ1231 Vertical Switched Interlocked Socket 32A 2P+E 6h IP67
HTPZ1231
HTPZ1231
HTPZ1231 Vertical Switched Interlocked Socket 32A 2P+E 6h IP67
32A2P+EIP676h
Rated current: 32A
Rated voltage: 220-250V～
Frequency: 50/60Hz
Number of poles: 2P+E
IP-Class: IP67
Position of earthing contact: 6h
PDF Download
Technical specifications
ModelHTPZ1231
Commercial SeriesHTPZ Series
Product descriptionInterlocked Socket
Mouting versionMounted
ColourBlue
Rated current32A
Rated voltage220-250V
Poles2P+E
Hour position6h
Working frequency50Hz/60Hz
Protection degree IPIP67
Protection degreeWatertight
Housing MaterialPC/ABS
Contact materialCuZn (brass)
Surface treatment conatactsNickel-plated
TerminalsScrew terminals

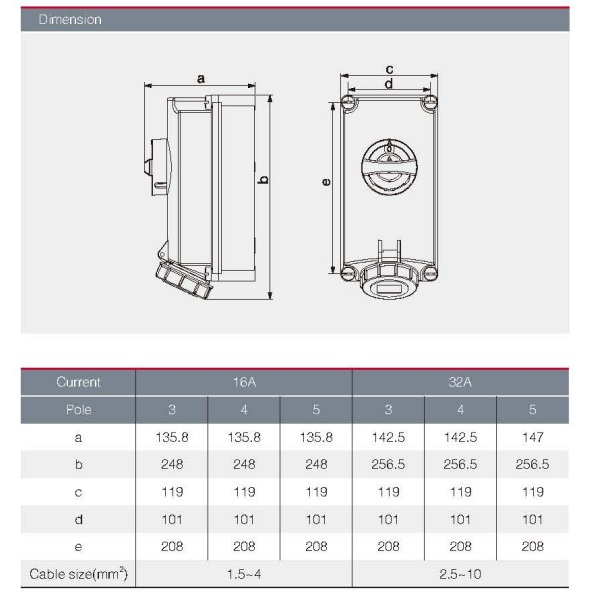

Dimension

P30 600 x 600 -.jpg
