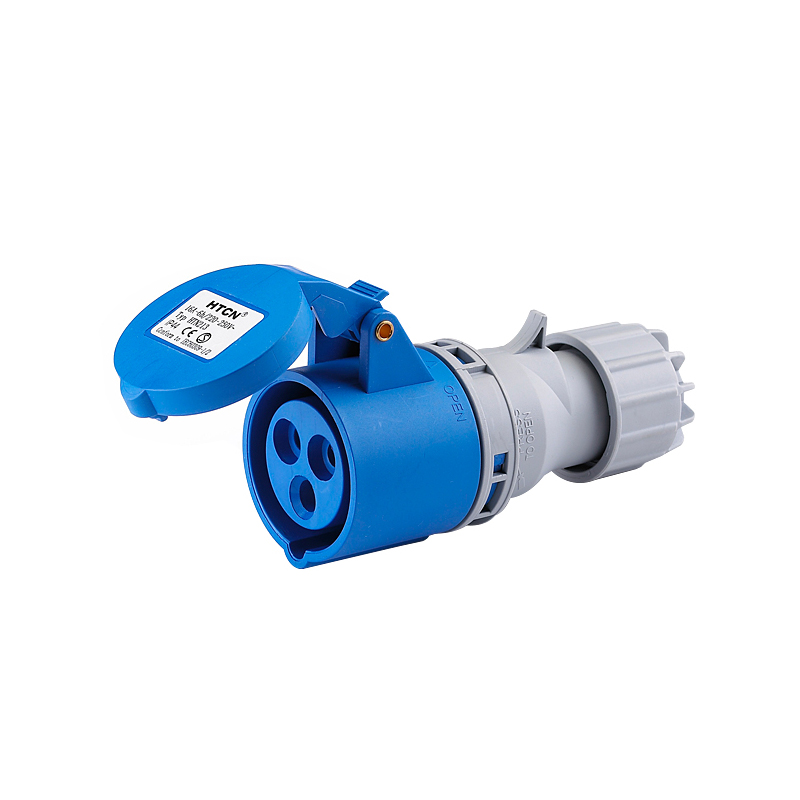

HTN223 CEE Industrial Socket 32A 2P+E 6h IP44
HTN213 HTN223
HTN213 HTN223
HTN223 CEE Industrial Socket 32A 2P+E 6h IP44
32A2P+EIP446h
Rated current: 32A
Rated voltage: 220-250V～
Frequency: 50/60Hz
Number of poles: 2P+E
IP-Class: IP44
Position of earthing contact: 6h
PDF Download
Technical specifications
ModelHTN223
Commercial SeriesHTN Series
Product descriptionConnector
Mouting versionPortable
ColourBlue
Rated current32A
Rated voltage220-250V
Poles2P+E
Hour position6h
Working frequency50Hz/60Hz
Protection degree IPIP44
Protection degreeSplashproof
Housing MaterialPA6
Contact materialCuZn (brass)
Surface treatment conatactsNickel-plated
TerminalsScrew terminals


Dimension

P11 600 x 600 - IP44 连接器.jpg
