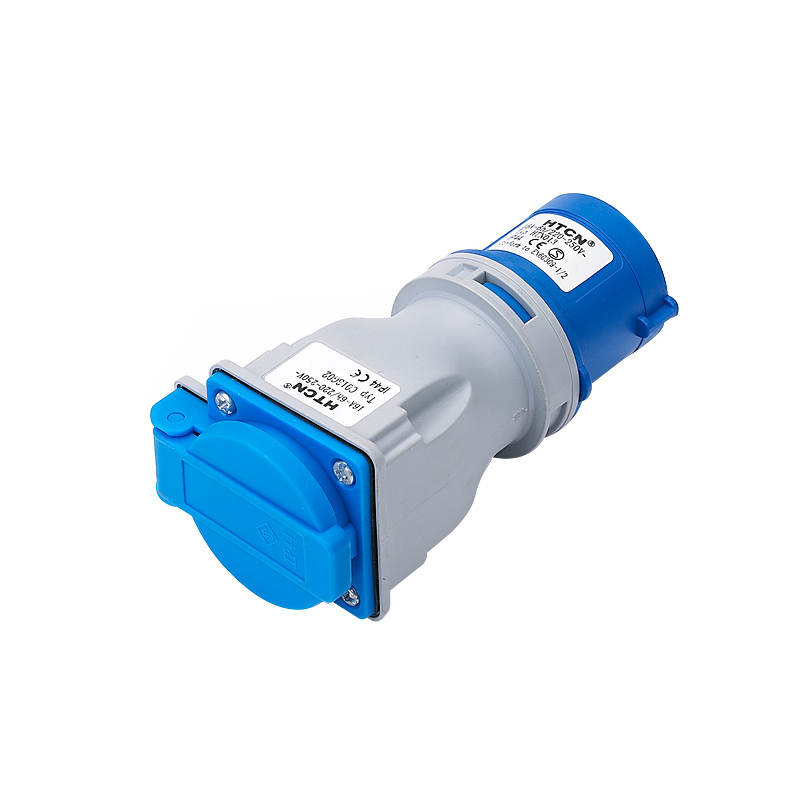

C013G01 Industrial Adaptor 16A 2P+E 6h IP44 with Schuko socket
C013G01
C013G01
C013G01 Industrial Adaptor 16A 2P+E 6h IP44 with Schuko socket
16A2P+EIP446h
Rated current: 16A
Rated voltage: 220-250V～
Frequency: 50/60Hz
Number of poles: 2P+E
IP-Class: IP44
Position of earthing contact: 6h
PDF Download
Technical specifications
ModelC013G01
Commercial SeriesC0 Series
Product descriptionIndustrial Adaptor
Mouting versionPortable
Input plug16A/3P/230V
Output Socket1 Schuko 16A/230V
Working frequency50Hz/60Hz
Protection degree IPIP44
Protection degreeSplashproof
Housing MaterialPA6
NotesFor temporary use only
Dimension

P26 400 x 400 - C013G01.jpg
