C015G01 Industrial Adaptor 16A 3P+N+E 6h IP44 with Schuko socket
C015G01
C015G01
C015G01 Industrial Adaptor 16A 3P+N+E 6h IP44 with Schuko socket
16A3P+N+EIP446h
Rated current: 16A
Rated voltage: 220-380V/240-415V～
Frequency: 50/60Hz
Number of poles: 3P+N+E
IP-Class: IP44
Position of earthing contact: 6h
PDF Download
Technical specifications
ModelC015G01
Commercial SeriesC0 Series
Product descriptionIndustrial Adaptor
Mouting versionPortable
Input plug16A/5P/400V
Output Socket1 Schuko 16A/230V
Working frequency50Hz/60Hz
Protection degree IPIP44
Protection degreeSplashproof
Housing MaterialPA6
NotesFor temporary use only

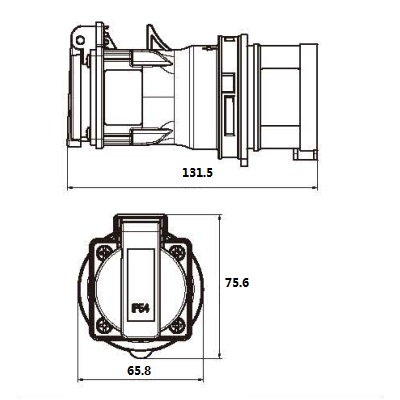

Dimension

P27 400 x 400 - C015G01.jpg
