HTPZ2313 Horizontal Switched Interlocked Socket with DIN-Rail 16A 2P+E 6h IP44
HTPZ2313
HTPZ2313
HTPZ2313 Horizontal Switched Interlocked Socket with DIN-Rail 16A 2P+E 6h IP44
16A2P+EIP446h
Rated current: 16A
Rated voltage: 220-250V～
Frequency: 50/60Hz
Number of poles: 2P+E
IP-Class: IP44
Position of earthing contact: 6h
PDF Download
Technical specifications
ModelHTPZ2313
Commercial SeriesHTPZ Series
Product descriptionInterlocked Socket
Mouting versionMounted
ColourBlue
Rated current16A
Rated voltage220-250V
Poles2P+E
Hour position6h
Working frequency50Hz/60Hz
Protection degree IPIP44
Protection degreeSplashproof
Housing MaterialPC/ABS
Contact materialCuZn (brass)
Surface treatment conatactsNickel-plated
Position for fuse6 modules

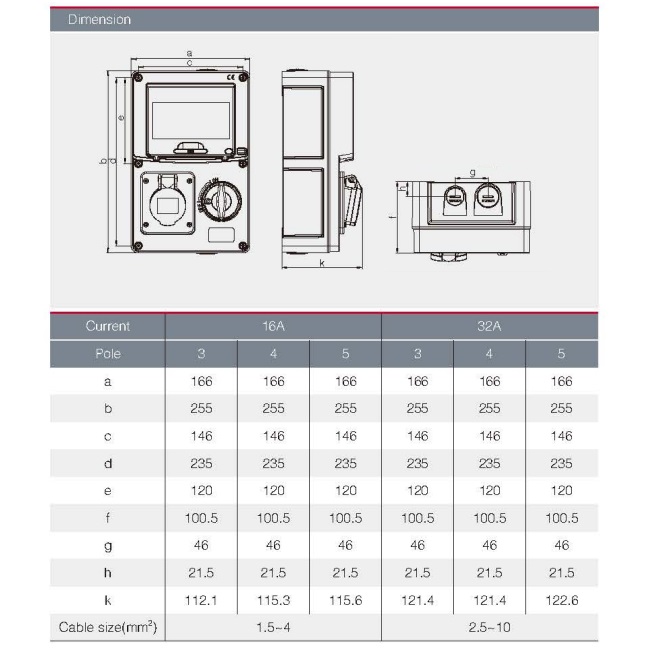

Dimension

P29 650 x 650 -.jpg
