HTD125G CEE Wall Socket - Combo 32A 3P+N+E 6h IP44 with Schuko socket
HTD115G
HTD115G
HTD125G CEE Wall Socket - Combo 32A 3P+N+E 6h IP44 with Schuko socket
32A3P+N+EIP446h
Rated current: 32A
Rated voltage: 220-380V/240-415V～
Frequency: 50/60Hz
Number of poles: 3P+N+E
IP-Class: IP44
Position of earthing contact: 6h
PDF Download
Technical specifications
ModelHTD125G
Commercial SeriesHTD Series
Product descriptionWall Socket - combo
Mouting versionMounted
ColourRed
Rated current32A
Rated voltage380-415V
Poles3P+N+E
Hour position6h
Working frequency50Hz/60Hz
Protection degree IPIP44
Protection degreeSplashproof
Housing MaterialPA6
Contact materialCuZn (brass)
Surface treatment conatactsNickel-plated
TerminalsScrew terminals
Cable entryM25

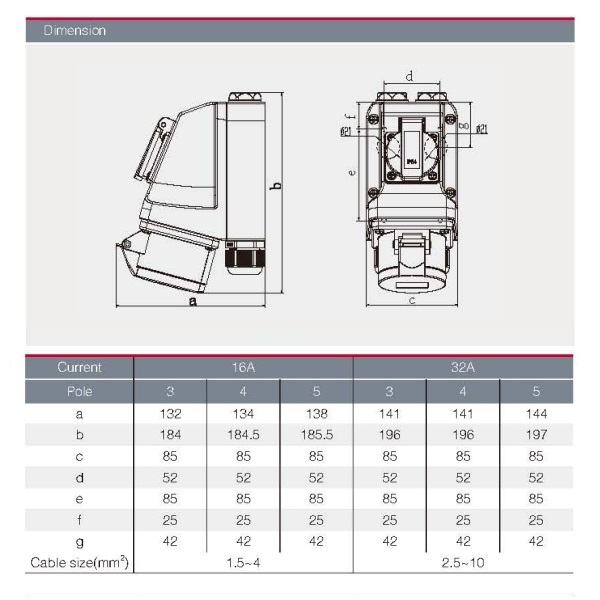

Dimension
