HTN3131 Sloping Panel Socket 16A 2P+E 6h IP67
HTN3131
HTN3131
HTN3131 Sloping Panel Socket 16A 2P+E 6h IP67
16A2P+EIP676h
Rated current: 16A
Rated voltage: 220-250V～
Frequency: 50/60Hz
Number of poles: 2P+E
IP-Class: IP67
Position of earthing contact: 6h
PDF Download
Technical specifications
ModelHTN3131
Commercial SeriesHTN Series
Product descriptionPanel Socket
Mouting versionMounted
ColourBlue
Rated current16A
Rated voltage220-250V
Poles2P+E
Hour position6h
Working frequency50Hz/60Hz
Protection degree IPIP67
Protection degreeWatertight
Housing MaterialPA6
Contact materialCuZn (brass)
Surface treatment conatactsNickel-plated
TerminalsScrew terminals

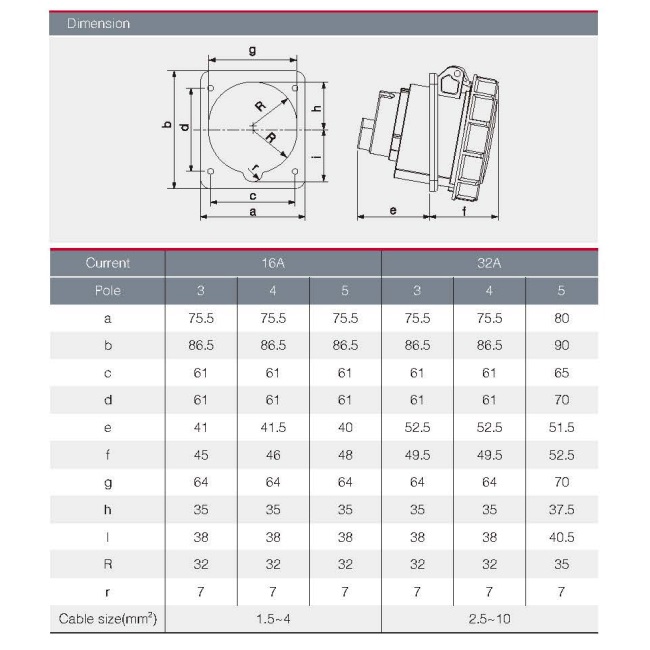

Dimension

P19 650 x 650 - IP67 面板插座斜_16A,32A.jpg
