HTB117 CEE Wall Socket 16A 6P+E 6h IP44
HTB117 大
HTB117 大
HTB117 CEE Wall Socket 16A 6P+E 6h IP44
16A6P+EIP446h
Rated current: 16A
Rated voltage: 250-400～
Frequency: 50/60Hz
Number of poles: 6P+E
IP-Class: IP44
Position of earthing contact: 6h
PDF Download
Technical specifications
ModeHTB117
Commercial SeriesHTB Series
Product descriptionWall Socket
Mouting versionMounted
ColourRed
Rated current16A
Rated voltage250-400V
Poles6P+E
Hour position6h
Working frequency50Hz/60Hz
Protection degree IPIP44
Protection degreeSplashproof
Housing MaterialPA6
Contact materialCuZn (brass)
Surface treatment conatactsNickel-plated
TerminalsScrew terminals

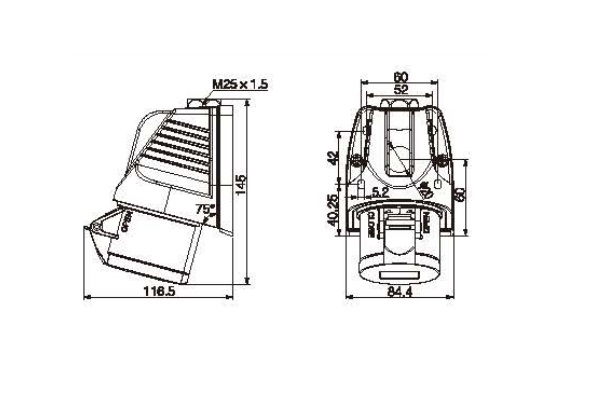

Dimension

P38 -5.jpg
