HTN215 CEE Industrial Socket 16A 3P+N+E 6h IP44
HTN215 HTN225
HTN215 HTN225

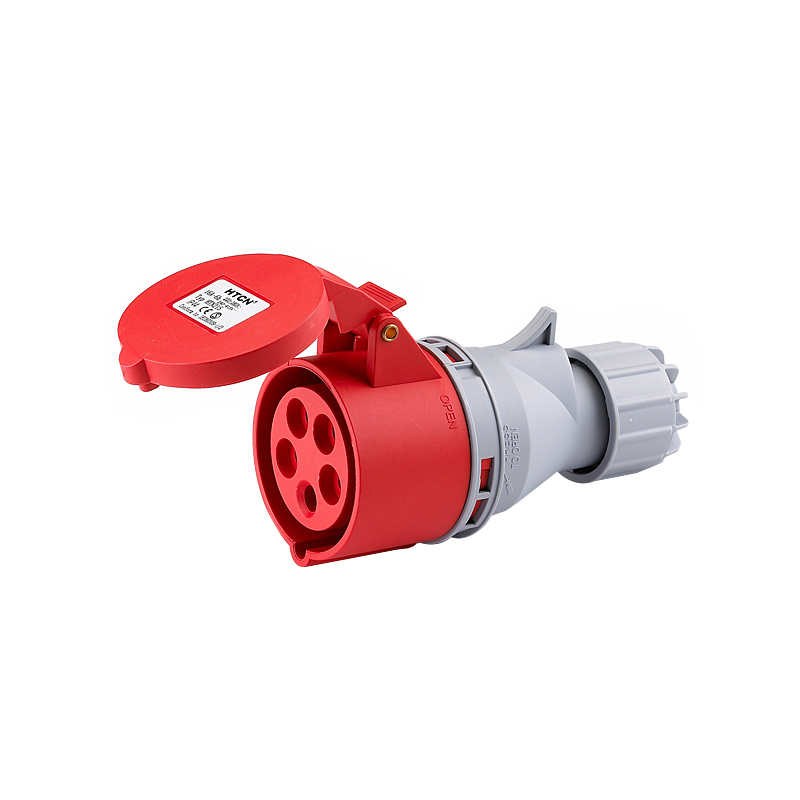

HTN215 CEE Industrial Socket 16A 3P+N+E 6h IP44
16A3P+N+EIP446h
Rated current: 16A
Rated voltage: 220-380V/240-415V～
Frequency: 50/60Hz
Number of poles: 3P+N+E
IP-Class: IP44
Position of earthing contact: 6h
PDF Download
Technical specifications
ModelHTN215
Commercial SeriesHTN Series
Product descriptionConnector
Mouting versionPortable
ColourRed
Rated current16A
Rated voltage380-415V
Poles3P+N+E
Hour position6h
Working frequency50Hz/60Hz
Protection degree IPIP44
Protection degreeSplashproof
Housing MaterialPA6
Contact materialCuZn (brass)
Surface treatment conatactsNickel-plated
TerminalsScrew terminals


Dimension

P11 600 x 600 - IP44 连接器.jpg
