HTB715 CEE Wall Plug with phase inverter 16A 3P+N+E 6h IP44
HTB715 - 2
HTB715 - 2
HTB715 CEE Wall Plug with phase inverter 16A 3P+N+E 6h IP44
16A3P+N+EIP446h
Rated current: 16A
Rated voltage: 220-380V/240-415V～
Frequency: 50/60Hz
Number of poles: 3P+N+E
IP-Class: IP44
Position of earthing contact: 6h
PDF Download
Technical specifications
ModeHTB715
Commercial SeriesHTB Series
Product descriptionWall Plug
Mouting versionMounted
ColourRed
Rated current16A
Rated voltage380-415V
Poles3P+N+E
Hour position6h
Working frequency50Hz/60Hz
Protection degree IPIP44
Protection degreeSplashproof
Housing MaterialPA6
Contact materialCuZn (brass)
Surface treatment conatactsNickel-plated
TerminalsScrew terminals

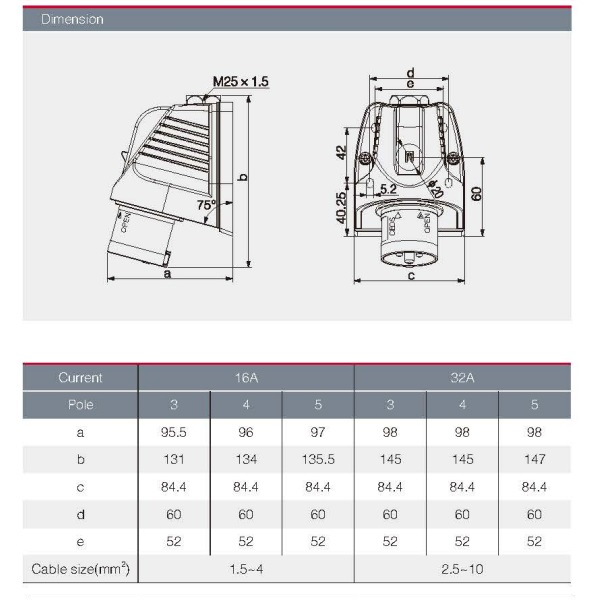

Dimension
